10  Lab 10: Geoprocessing tools

The ‘geoprocessing’ term is sometimes used as a catch all for all GIS operations, but within QGIS, it pertains to a specific set of tools. With the exception of the Buffer tool, the geoprocessing tools are aimed at creating new geometries based on the overlay of two separate vector layers.

You already learned and used one geoprocessing tool: the Clip tool. If finds the areas that are common between two layers, and ‘cookie cuts’ one of them based on the shape of the other.

Other geoprocessing tools will work similarly. For example, imagine that you have a polygon layer with all the woodlands in Scotland, and another with all the protected areas in Scotland. If you wanted to know all the woodland areas that are protected, you could Clip the woodland layer by the protected area layer. But what if you wanted the opposite - all the woodlands that are not protected. You will need some sort of reverse clip tool - turns out that is the Difference geoprocessing tool.

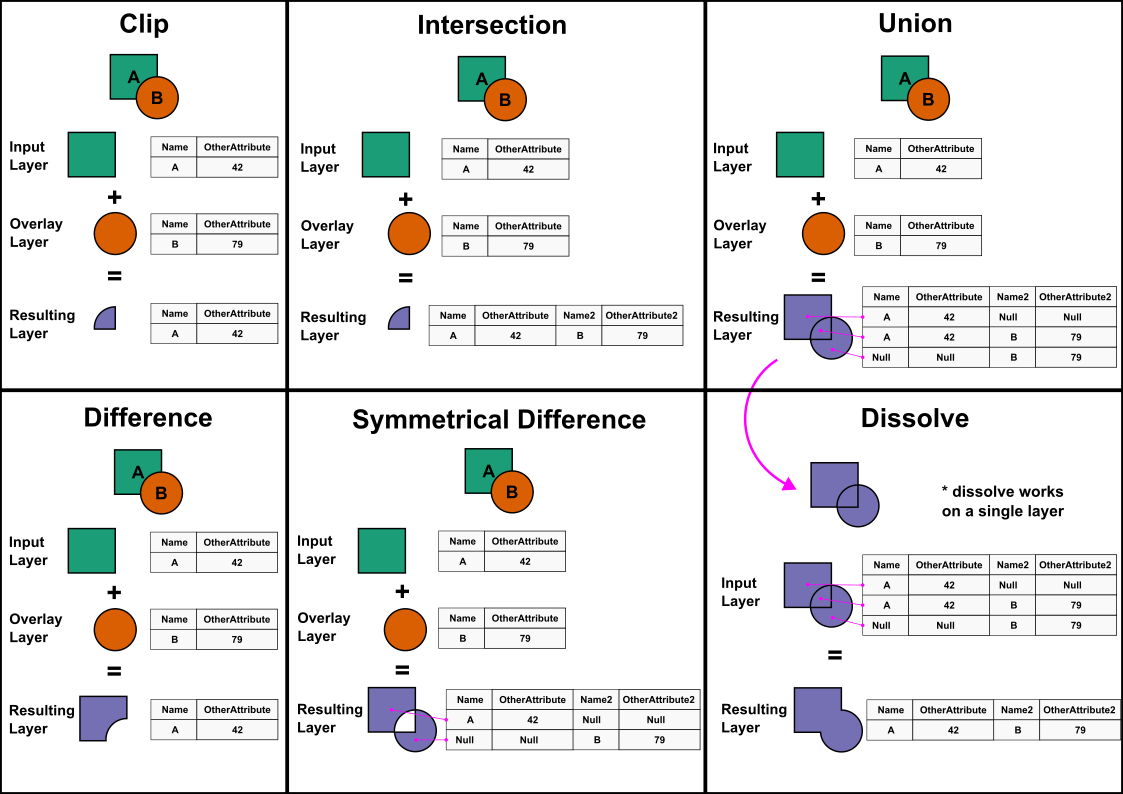

The diagram below summarises the main geoprocessing tools:

10.1 Guided Exercise: assessing children access to schools

You are a GIS analyst at the Stirling council, and you have been asked to perform an analysis regarding children access to schools. Your manager has indicated which data sources you should use, and they want you to answer how many children within the relevant age range live within less than 1km, between 1km and 2km, and further than 2km of any primary (4 to 10 years old) and secondary (11 to 17 years old) school. You have been instructed to use the census data at the most detailed level (Output Area, OA), and to limit your analysis to the OAs and schools that are within Stirling Council Area limits. You should report the results as a table.

10.1.1 Obtaining the data

  1. The first piece of data needed for this exercise is of course the limits of the Stirling Council Area. The official administrative boundary data for the UK is contained within the Ordnance Survey Boundary Line dataset. It can be downloaded from the Ordnance Survey Open Data Hub or from Digimap, but the files cover all of the UK, and thus are a very large download. To save precious lab time, we have already isolated the Stirling Council boundary as a separate file that you can download here. You are welcome!

You can then download the two other datasets needed:

  1. Scottish School Roll and Locations: this dataset is provided by the Scottish Government, and contains information on all Scottish schools. Download the ‘Scottish School Roll and Locations ZIP’ (NOT the one with ‘Table’ on the name) from here.

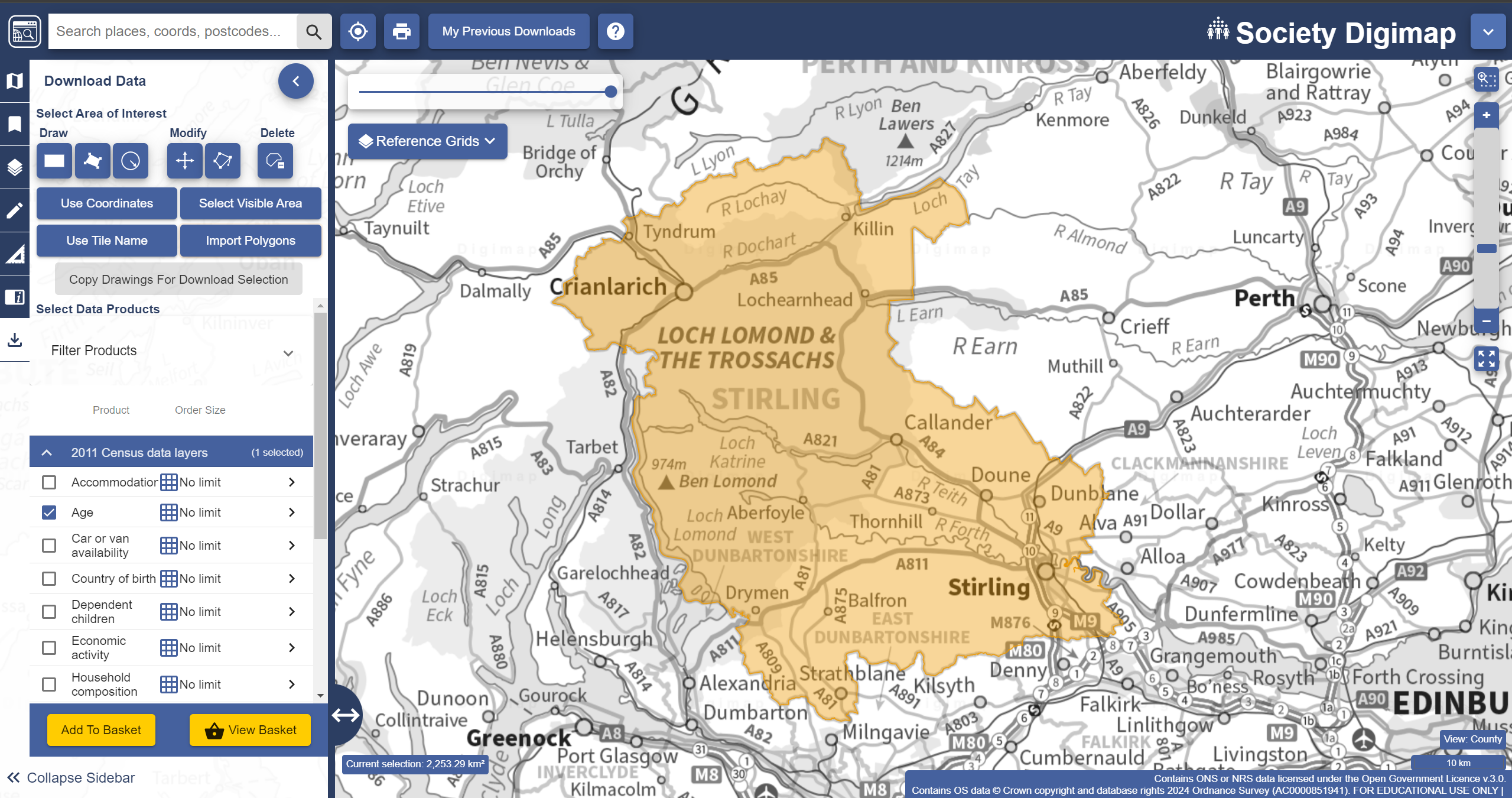

  2. Census data on population age: the Digimap platform offers access to the 2011 Census variables in spatial format. To obtain it, go to the Society tab, and then select the ‘Download’ option on the leftmost toolbar (a down arrow going into a ‘box’). That will bring up the familiar Digimap download interface. This time we will use our Stirling Council shapefile to set the search area. For that, click on the Import Polygons button, and then on Choose File. Then choose the zipped Stirling dataset you have downloaded and click on import. Finally, under the 2011 Census data layers tab, select the Age dataset. Your window should look like this:

Warning

The data for the 2022 census have been officially published by National Records of Scotland, but are not available on Digimap yet. Since we are only practising our GIS knowledge, it is OK to use mismatched data (schools from 2024 vs. age data from 2011). In a real application scenario, it would be very important to make sure the temporal coverage of the datasets matches as well as possible.

  1. Add your data to the basket and finish the order, then download the data as you have done in previous labs.
  2. Now create a folder structure for your project and extract and organise the contents of the three datasets. Then create a new QGIS project and import the three datasets. The census geopackage will contain layers for different levels of aggregation, remember you want the Output Area polygons. If everything worked correctly, you should have something like this:

Stop and Think

  1. What are the data models and file formats of each dataset?

  2. What are the attributes contained in each dataset?

  3. What is the CRS of each dataset? Are they all the same?

  1. They all use the vector data model. The schools are vector points, the other are vector polygons.

  2. The attributes of each dataset can be seen by either inspecting the attribute table of each dataset or by looking at the layer Properties > Fields tab.

  3. All three datasets are in OS British Standard Grid (EPSG 27700). You can find this out by either going to the Properties > Information tab or by right-clicking on the layer name then on Layer CRS.

10.1.2 Preparing the data

You may have noticed that your Digimap census data download includes many OA polygons that are outside of Stirling Council. This is because of a (sadly) very common problem with spatial data from different sources - the census output areas (OAs) do not perfectly line up with the administrative boundaries of the council. So when the Digimap interface tries to determine which OAs overlap with Stirling, we get more data than we need.

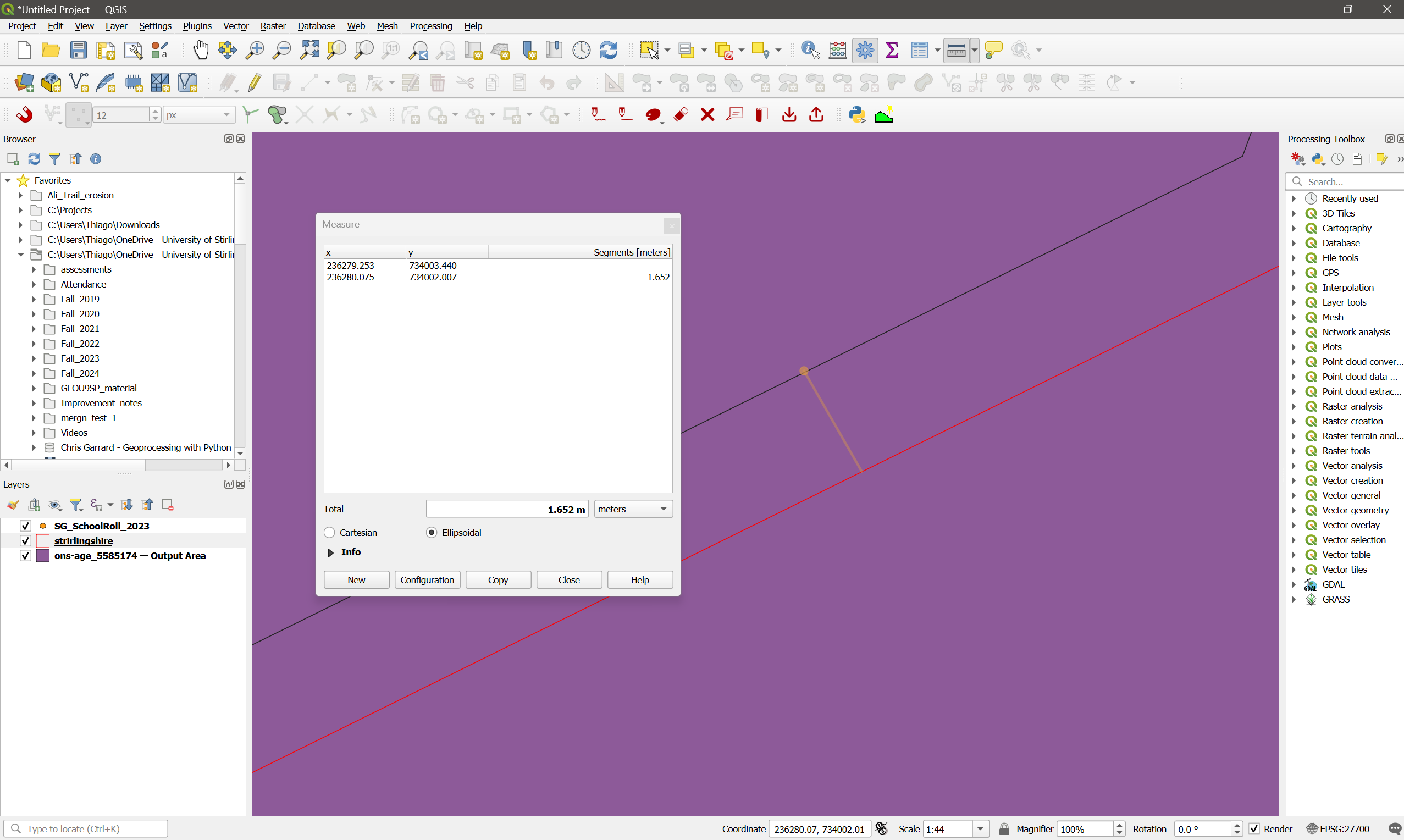

  1. Set the symbology of the Stirling boundaries to a red outline without fill. Then make sure this layer is on top of the census layer. Then zoom in very close to the Stirling boundary. You will see they are offset by about 1.5m:

We thus need to further subset our data to match the actual extent of the Stirling council.

Stop and Think

What are the options of GIS operations that you have to subset the datasets?

You could use Clip or Intersection if you wanted to change (‘cut’) the geometries of the target layer, or use Select by Location if you wanted to fidn the overlapping polygins without changing geometries.

After consulting with your manager, you both decide that clipping or intersecting the data would not be a good option as it would change the geometry of the OAs, and there are official limits. So you decide to use Select by Location:

  1. Go to Vector > Research Tools > Select by Location... or click on the button.

  2. Select all polygons from the census layer that are within the Stirling bounds layer. Check the selection results.

  3. Change your criteria to include both intersect and are within the Stirling bounds layer. Check the selection results.

Stop and Think

Why both selection attempts give you wrong results? How would you fix it?

Because of the mismatch between the boundaries of the OAs and the Stirlingshire boundaries. So inner OAs that are the edges of the council area are not considered fully within (they extend a sliver outwards from the actual bounds), and outer OAs also at the edges will be considered to intersect Stirling since they extend a sliver within the bounds.

Think a bit on how to fix it, then continue below for a solution.

You could manually deselect the polygons that are not part of Stirling council, but then you have an idea: what if you buffer the Stirlingshire boundaries to expand them a tiny bit, and then try selecting the polygons within the buffer. That way OAs inside the council area that slightly extend outwards will fall within the buffer, while OAs outside the council area that slightly extend inward will still not be fully within it.

  1. Go to Vector > Geoprocessing > Buffer and create a 20m buffer around the Stirling layer. You can just leave it as a temporary layer, as we will only use it for our spatial selection.

  2. Now repeat the Select by location operation for OA polygons within the buffered area. Bingo!

  3. Save the selection as a new layer by right clicking on the census layer name and selecting Export > Save Selected Features As... Once this new census layer is added to your project, remove the original one to avoid confusion.

10.1.3 Answering the question

Now we can answer the actual study question. As a reminder, it is how many children in the relevant age range live within less than 1km, between 1km and 2km, and further than 2km of any primary (4 to 10 years old) and secondary (11 to 17 years old) school?. You will need to use some of the Geoprocessing tools you just learned to answer that, as well as tools from previous weeks.

Stop and Think

Before you continue, try to think about the solution yourself. Look at the attributes of each layer, and then try to sketch a step-by-step plan to achieve the results you need. Then continue.

  1. You will first need to add up the number of children at each 1yr age bracket to compute the totals for the primary and secondary school age ranges (4-10 yo and 11-17 yo). For that, you can use the Field Calculator, as in previous labs. Just add up the numbers for columns age_4 to age_10 into a new age_4-10 column, and then add columns age_11 to age_17 into a new age_11-17 column.

  2. Then you will need to select only the schools within the Stirling council area. You can use Select by location as above, using the Stirling bounds, or by using the LAname field in the attribute table of the School Roll layer. Both methods should give you a selection of 48 schools. Create a new layer containing just these schools, then remove the original school layer from the project.

  3. The next step is to calculate the area covered by each distance bracket (1km, 2km) from the schools. For that, you should create a Buffer for the 1km distance, then a second Buffer for the 2km distance. Make sure you select the Dissolve result option when creating the buffers, since many locations will be within less than the specified distance from multiple schools, and we don’t want to repeat them.

  4. Then compute the Difference between the 2km and 1km buffers to create “rings” covering the range of 1km to 2km. This is important so we don’t “double count” the 1km bracket - see below.

Now you have to deal with the biggest limitation of your analysis - the OAs are still very big, and many will span areas both within and outside the 1k and 2km distances. You discuss the problem with your manager again, and you decide that the best approach is to weight the children count of each OA by the respective area of the OA that is within each distance bracket. So if an OA has 15 children aged 11-17, and 40% of the OA area is within 1km of a school, then you should multiply 15 by 0.4 to obtain the estimated number of children within 1km.

  1. The first step is to calculate the total area of each OA. You can do that by using the Field Calculator tool and creating a new field called oa_area that takes the $area parameter under the Geometry calculator operations. Remember to make this new field a Decimal number with two decimal places.
Stop and Think

What units were used for the area calculation? Does it matter?

Unless you have set it differently in your Project properties, areas are calculated in squared metres by default. This is not an ideal unit for such large areas (km\(^2\) would have been better), but since we will only need to calculate the percentage of this total area within each distance bracket, it shouldn’t matter much.

Now that you have the total areas for each OA, it is time to find out the portions within each distance bracket. For that, we can either Clip or get the Intersection of the buffer layers with the census layer.

Stop and Think

What will change in your results if you use Intersection instead of Clip?

Intersection will combine the attributes of both layers, while Clip will only preserve the attributes of the target layer.

  1. Since the buffers have been dissolved, they can’t be linked to individual schools anymore - whenever the buffers of two schools overlap, their attribute tables will just keep the name of one of the schools when they are dissolved. So no need to preserve the buffer attributes, and we can use Clip. Create two new layers, the first being the clipping of the census layer by the 1km buffer layer, and the second being the clipping of the census layer by the 1km-2km ‘donuts’ layer. We use it instead of the 2km buffer otherwise when we calculate the percentage of area within 2km we will be double counting the area within 1km - which is already covered by the 1km buffer.

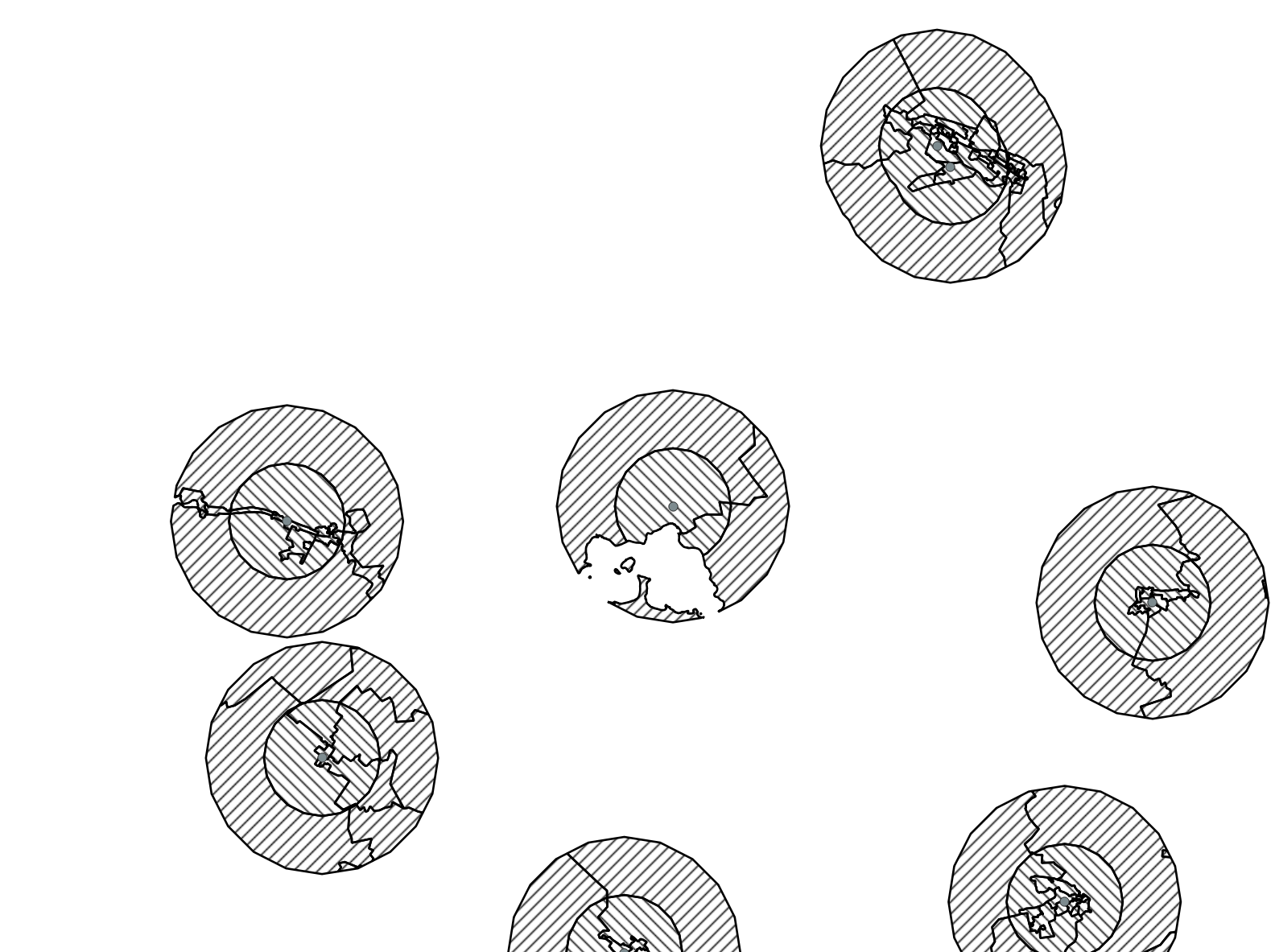

You should end up with something like the figure below. To make sure the layers don’t overlap, style them using hatching in different directions. If you see a cross-hatch, then they are overlapping, and it means you used the full 2km buffer instead of the 1km-2km ‘donut’:

  1. Now we can calculate the area percentages. First, re-calculate the polygon areas for the clipped layers, using the Field Calculator. Create a new attribute called clip_area, and assign the $area operator to it again. Remember to set it as a decimal number.

  2. Still using the Field Calculator, you can now calculate the percent area by creating a new attribute called perc_area, which will be clip_area / oa_area. It should also be a decimal number.

  3. Finally, calculate the weighted number of children by creating new fields. First calculate perc_4-10 as age_4-10 * perc_area, and then perc_11-17 as age_11-17 * perc_area. These fields should be integers, unless you are sending partial children to school.

Great, you are almost there! The last step is to aggregate all the data at the council level, and then also determine the number of children beyond 2km:

  1. Use the Statistical Summary tool to calculate the respective sums of perc_4-10 and perc_11-17. These are the final answers for how many children in the relevant age range live within less than 1km, between 1km and 2km?.

  2. To get the number of children beyond 2km, use the Statistical Summary tool to calculate the total number of children within each age bracket (age_4-10 and age_11-17) in the council, and then subtract the number of children within 1km and between 1km and 2km from this total.

Your final results should be:

1km 2km >2km
Primary 6451 6656 89
Secondary 7572 7880 91

That is the end of this lab. From now on the exercises will be a bit more involved, like the one above. But at the same time you will notice that much of the work is always the same - loading data, organising it, doing queries - we will just be adding new tools that open up new (but quite specific) analysis possibilities and/or make some of the things you did before faster/simpler. Overall, the general workflow of GIS is always the same.
